PT131melt pressure transducer/sensor

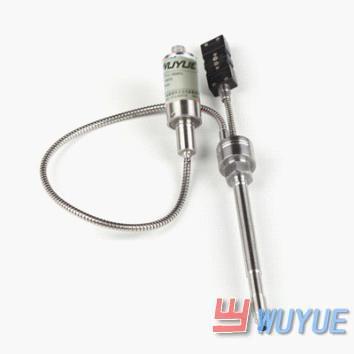

PT131 high temperature melt pressure transducer/sensor

Wuyue's PT131 series high temperature melt pressure sensors are applied to measure and control the pressure as well as temperature of those high temperature fluid medium of extruders for such as fiber, polyester, rubber, plastics.

Features: Rigid rod, Metal hose for isolation, Anticorrosion and wear resistance coating extends its service life by more than 5times

PARAMETER:

• Pressure ranges: 0~5MPa~200MPa
• Accuracy:< ±0.5% FS; < ±1.0% FS
• Signal output:1.5mv/v,2.0mV/V,3.3mV/V
• Working voltage:10VDC(6--12VDC)
• Calibration:80%FSO+1%
• Temperature resistance of probe:450°C
• Overload pressure:1.5*FS
• Combined error: ≤0.30Mpa/100°C
• Connector: common 5pin connector
• Standard threading: 1/2-20UNF, M14x1.5, M22*1.5,G3/4 ;other versions on request
•  high temperature melt pressure transducer/sensor
• Wuyue's melt pressure transducer got CE Approved
